Your Solar Panel Hates Shade: Why a Small Shadow Can Cut Charging Power

Your solar panel can be in bright daylight and still charge like it is having a bad day. One common reason is shade.

A branch, roof edge, tool bag, ladder, or even part of your vehicle can block light from part of a panel. Depending on how the cells are connected, that small shadow can reduce output by more than you might expect.

Think of it like a crew carrying a beam

Picture four workers carrying one long beam. If one person suddenly slows down, the whole team has to adjust. Solar cells can behave similarly when parts of a panel are electrically connected together. One shaded section can hold back the power available from the rest of the panel.

Simple electricity diagram

FULL SUN

☀️ ☀️ ☀️ ☀️
[ SOLAR PANEL ]
       │
       ▼
  HIGHER INPUT
       │
       ▼
[ POWER STATION ]


PARTIAL SHADE

☀️ ☀️ 🌳 ☀️
[ SOLAR PANEL ]
       │
       ▼
  LOWER INPUT
       │
       ▼
[ POWER STATION ]

Why this matters on a jobsite

You may set a portable panel beside the truck in the morning and get solid charging. A few hours later, the truck, scaffolding, lumber stack, or nearby building can cast a shadow across the panel. Your power station keeps running tool chargers and lights, but the solar input drops.

If the loads are using more power than the shaded panel is producing, the battery starts supplying the difference.

Camping and off-grid use

A campsite can change throughout the day. Trees that were not shading the panel at 10 a.m. may cover part of it later. Check the panel occasionally and move it only when it is safe and practical.

For portable setups, the simple rule is: give the panel the clearest view of the sun you can.

For DIY off-grid EV builders

Solar input matters because EV charging can be a steady load. A shaded array may still produce power, but the available charging power can fall. Watch the actual solar-input reading instead of assuming the panel is producing its nameplate rating.

Never exceed the power station's specified solar-input voltage or current limits. Use only compatible connectors and follow the panel, power-station, and vehicle-charging equipment instructions. Do not bypass protection devices or improvise unsafe connections.

The takeaway

The amount of panel covered by shade does not always match the amount of power you lose. The exact effect depends on the panel design, wiring, bypass diodes, and where the shadow lands. The safest practical move is also the easiest: keep portable panels clear of shade whenever possible and watch the real input-watt reading on your power station.

EcoFlow offer

Eligible users can sign up through the GreenStone Guard EcoFlow referral link for 5% off eligible purchases: EcoFlow Referral Rewards.

Referral disclosure: GreenStone Guard may receive a referral benefit from qualifying activity. EcoFlow controls eligibility, exclusions, and current program terms.

Sources: U.S. Department of Energy, PV Cells 101 and Photovoltaic System Design and Energy Yield; National Renewable Energy Laboratory, research on partial shading of photovoltaic systems.

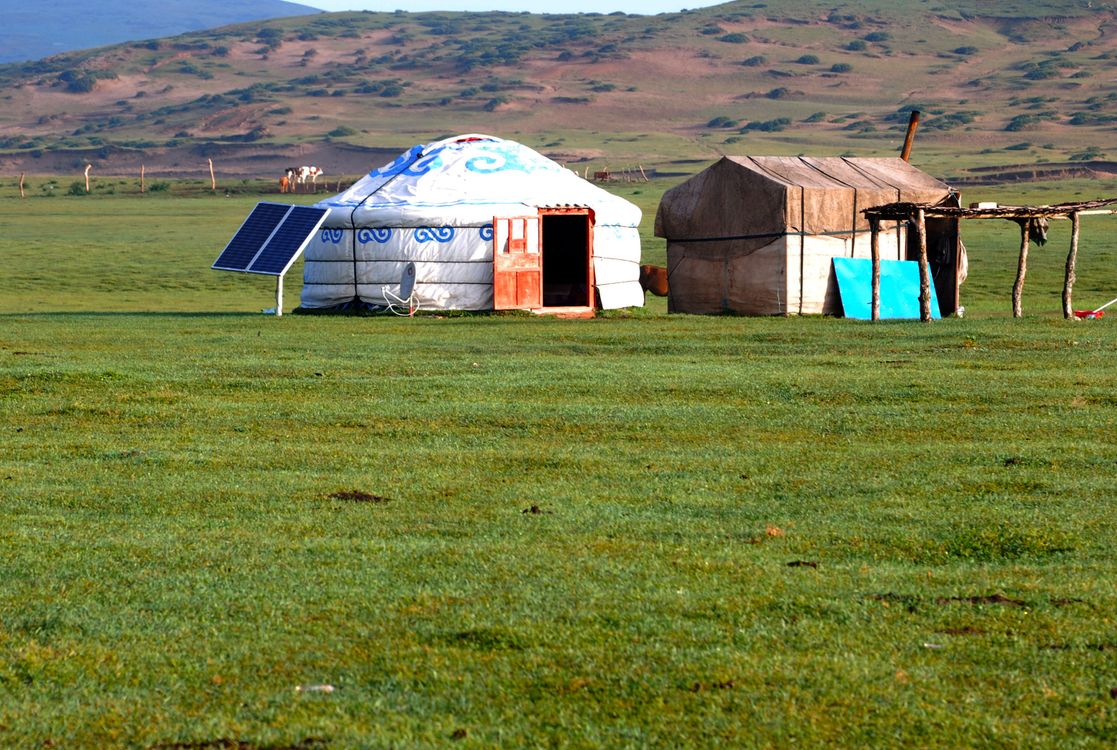

Featured photo: Lovesa Chang / Pexels, free to use.
