120V vs. 240V Off-Grid EV Charging: Why Voltage Changes the Game

If you are building an off-grid EV charging setup, voltage matters because electrical power depends on both voltage and current.

The basic relationship is simple: watts = volts × amps. Think of voltage like water pressure and current like how much water is flowing. More pressure can move more power without increasing the flow rate.

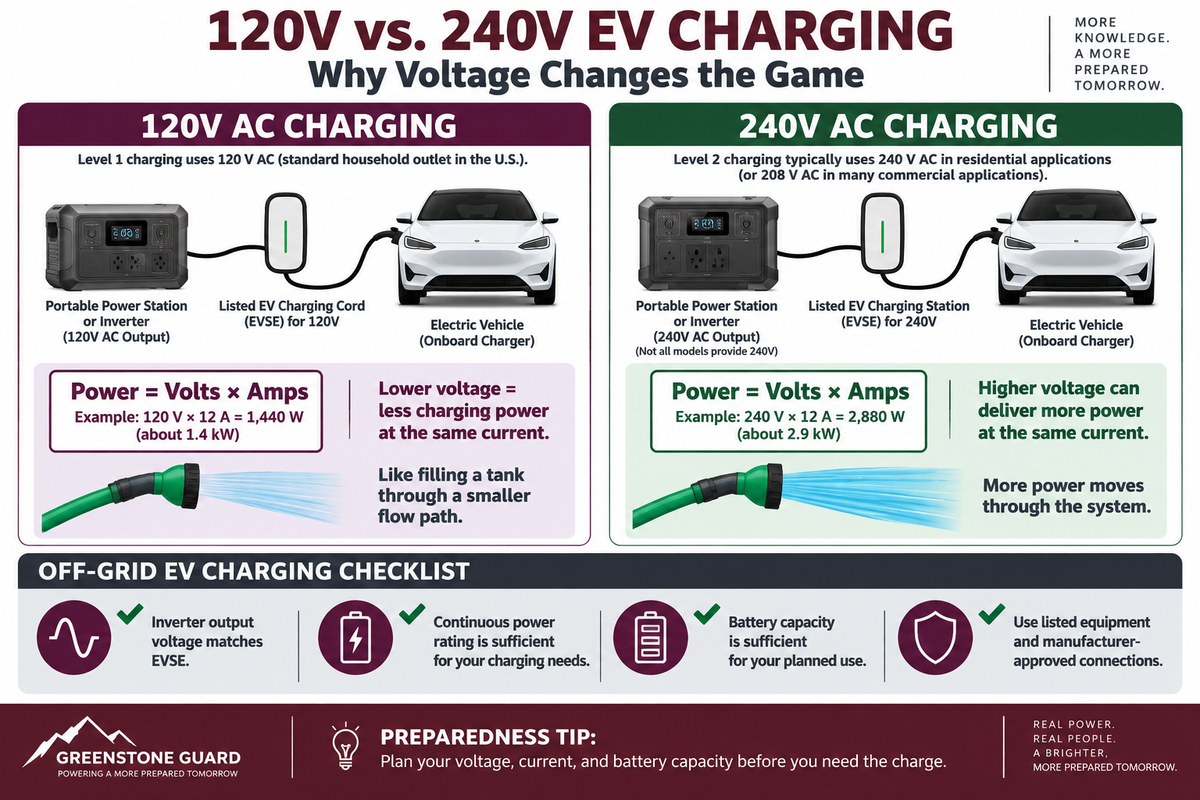

120V vs. 240V

Level 1 EV charging uses 120V AC. Level 2 charging typically uses 240V AC in residential settings. The U.S. Department of Energy notes that Level 2 charging can deliver much more power than Level 1, but the actual charging rate also depends on the EVSE and the vehicle's onboard charger.

Here is a simple example using the same current:

• 120V × 12A = 1,440W, or about 1.4kW.
• 240V × 12A = 2,880W, or about 2.9kW.

That does not mean every EV will charge at those exact numbers. It only shows why higher voltage can move more power at the same current.

Think of it like filling a tank

A small hose can fill a tank, but it takes time. A higher-capacity setup can move more energy in the same period. For an EV, that can mean the difference between slowly adding a little range and getting a more useful charge during a work shift or overnight outage.

What matters in an off-grid build

Before plugging an EV into a portable power station or inverter, check four things:

• The inverter output voltage matches the EVSE input.
• The inverter can supply the required continuous power.
• The battery has enough usable energy for the amount of range you want to add.
• The EVSE, connectors, cords, and adapters are listed or manufacturer-approved for the way you are using them.

Do not improvise adapters, bypass protection, or assume a 240V outlet means the inverter can support the EV load. The lowest-rated part of the system can limit the entire setup.

Why this matters for preparedness

For a contractor, mechanic, field technician, or anyone who depends on an EV for work, backup charging can be the difference between getting home and being stuck. A portable power station will not replace a full charging station, but a properly planned system can provide useful emergency range.

Preparedness lesson: Know your voltage, current, inverter limit, and battery capacity before you need the charge.

Sources: U.S. Department of Energy Alternative Fuels Data Center, Electric Vehicle Charging Stations; U.S. Department of Energy FEMP, Electric Vehicle Supply Equipment Infrastructure; DOE Electricity Industry Primer for the relationship P = V × I.
