Name: BLUETTI Charger 1 Alternator Charger
Brand: BLUETTI
SKU: A-CG-D60L-UG-0359
Price: 242.00 USD
Availability: InStock

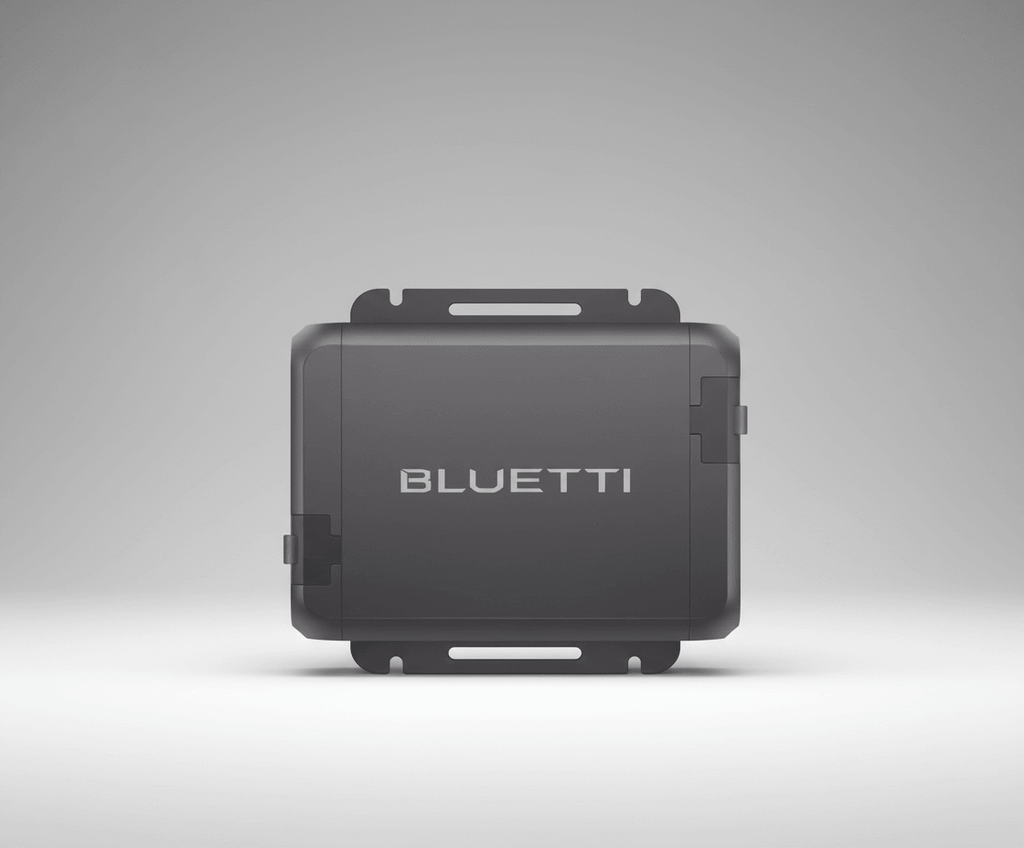

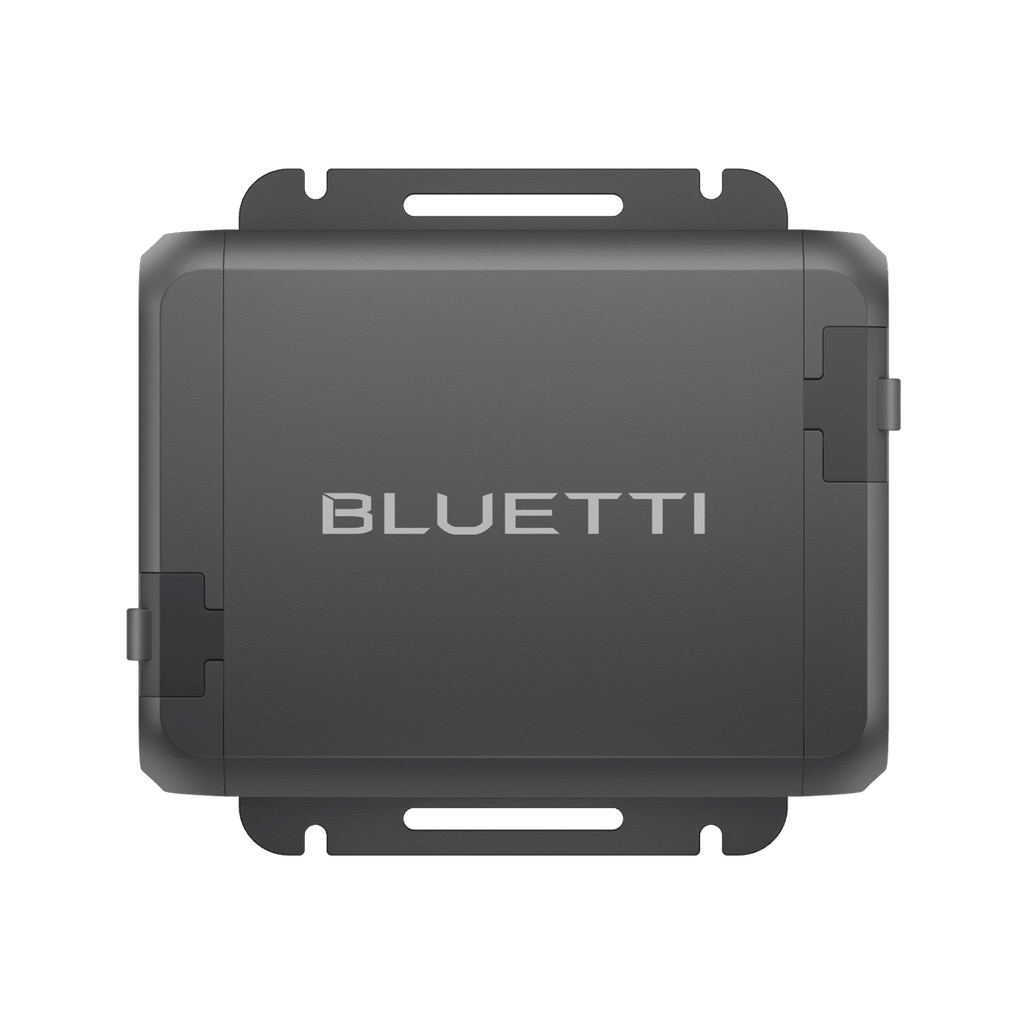

BLUETTI Charger 1 560W High-Speed Alternator Charger with Bluetooth Control-0

1/2

BLUETTI Charger 1 Alternator Charger

$242.00 USD

213 in stock

Check model compatibility, connector type and package contents before you order.

Need help choosing? →

Product overview

BLUETTI 560W DC-DC alternator charger for recharging a compatible portable power station from a 12V or 24V vehicle system while driving.

Secure Shopify Checkout Customer Support

Best For

Recharging a compatible portable power station from a vehicle alternator while you drive.

What’s Included

CHARGER 1, MC4 output cable, terminals, mounting screws, hex socket wrench and documentation. The 5m 6AWG DC input cable set with 60A circuit breaker is optional; the matching station input cable is also required.

Specifications

Model	BLUETTI CHARGER 1
Output	560W maximum; 10A maximum
Vehicle input	12V / 50A maximum or 24V / 25A maximum
Output voltage	27V default; adjustable 15–56V with 12V battery, or 27–56V with 24V battery
Dimensions	145 × 110 × 60mm
Weight	Approximately 1.2kg
Protection	IP20; mount in a dry vehicle cabin or trunk
Operating temperature	−20°C to 60°C
Compatibility limit	Do not charge AC300, AC500, EP500 or EP500Pro above 40°C ambient. Match output voltage to the station DC-input range.
Installation	Requires input cables and a 60A circuit breaker; standard kit does not include the optional 5m input cable set

Compatibility & Use

Check the exact model and selected variant. Match the device connectors, voltage, current and power limits in the specifications. Installation accessories or a separate power source may be required.

Warranty & Support

For product support and warranty questions, contact GreenStone Guard at info@greenstoneguard.com with your order number and product model. Ask us to confirm the manufacturer or supplier coverage for this item before purchase.
