Name: Victron - SmartSolar MPPT 150/60-MC4 [SCC115060311]
Brand: Sequence Solar
SKU: SCC115060311
Price: 368.90 USD
Availability: InStock

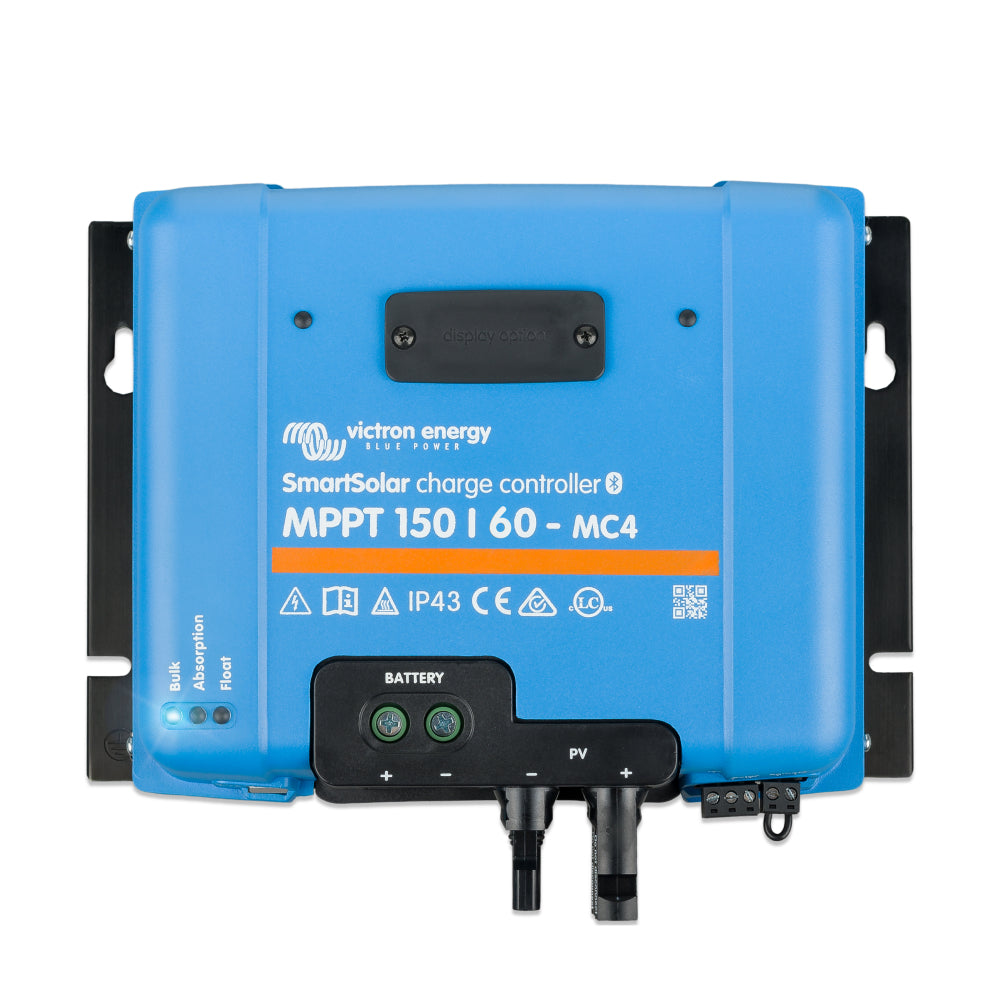

Victron - SmartSolar MPPT 150/60-MC4 [SCC115060311]

$368.90 USD $434.00 USD

In stock

PRODUCT OVERVIEW

Victron SmartSolar MPPT 150/60-MC4 is a Bluetooth-enabled solar charge controller for compatible 12V, 24V, 36V and 48V battery systems. It provides up to 60A battery charging with MC4 solar connections. Configure charging settings for the battery manufacturer’s requirements.

Fast Shipping Secure Shopify Checkout Customer Support

Best For

Battery-based solar systems that need an MPPT charge controller with MC4 connections.

What’s Included

Victron SmartSolar MPPT 150/60-MC4 charge controller, model SCC115060311. Solar panels, battery bank and system wiring are separate components.

Specifications

Brand: Victron Energy
Model: SmartSolar MPPT 150/60-MC4
SKU: SCC115060311
Battery voltage: 12/24/48V automatic selection; 36V manual selection
Maximum battery charge current: 60A
PV open-circuit voltage: 150V absolute maximum in the coldest conditions; 145V maximum at startup and operation
Maximum PV short-circuit current: 50A
Nominal PV power: 860W at 12V; 1,720W at 24V; 2,580W at 36V; 3,440W at 48V
PV connections: two MC4 pairs; maximum 30A per connector; one MPPT tracker
Communication: Bluetooth and VE.Direct
Dimensions (H × W × D): 215 × 250 × 95 mm
Weight: 3 kg
Protection: IP43 electronics, IP22 connection area; indoor installation
Operating temperature: -30°C to +60°C; full rated output up to 40°C

Shipping & Returns

Fast Shipping. Review the Shipping Policy and Return/Refund Policy for complete terms.

Warranty & Support

For product support and warranty questions, contact GreenStone Guard at info@greenstoneguard.com with your order number and product model. Ask us to confirm the manufacturer or supplier coverage for this item before purchase.
